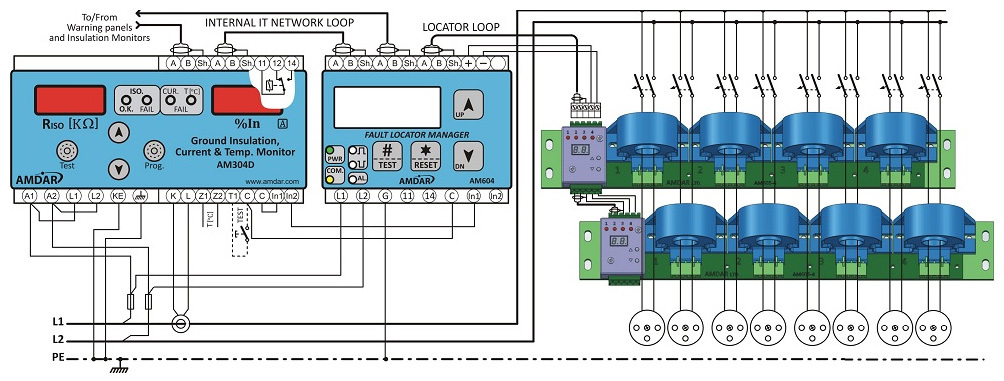

The fault locator system is used to locate faulty outlets in unearthed networks.
The devices monitor the insulated network.In case of a fault, locates the faulty outlet and adds the fault location to the already active alarm.
The fault locator system can detect faults in 4, 8 or 12 outlets for each ground insulation monitor.
The Fault locator system has two type of components:
1. AM604 – Fault locator manager.
2. AM605-4 – Unit of 4 Fault Sensors (up to 3 per manager)
- 商品名称： 故障定位
- 商品编号： AM604/AM605-4
- 产品描述
- 概要
-
Characteristics
- Fault Location in up to 12 outlets for each ground insulation monitor.
- Fault Location indication on Warning Panels, HMI and Facility control via communication.
- Fault indication on Fault Locator Manager and also on fault detectors.
- LCD Display for easy setup.
- Integrated power supply.
- Last fault memory – Optional.
- Modular Fault Locator Manager – Standard 4 module box for easy mounting on DIN rail.
-
The fault locator system is used to locate faulty outlets in unearthed networks.
The devices monitor the insulated network.In case of a fault, locates the faulty outlet and adds the fault location to the already active alarm.
The fault locator system can detect faults in 4, 8 or 12 outlets for each ground insulation monitor.
The Fault locator system has two type of components:
1. AM604 – Fault locator manager.
2. AM605-4 – Unit of 4 Fault Sensors (up to 3 per manager)
